In the early stage of mold engineering,  our design and project engineers will do product and mold structure analysis. Our product structure analysis includes: appearance requirements, shrinkage, deformation, undercut, draft angle etc.

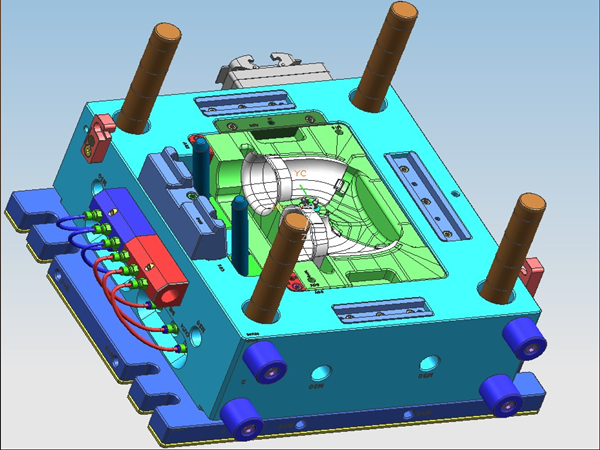

The mold structure analysis includes: parting surface, gate type and location, slider, insert, cooling, ejection, part taking method, appearance treatment, mold strength and life, etc.

Our design Softwares:

  • AutoCAD
  • SolidWorks
  • Pro/Engineer
  • Unigraphics

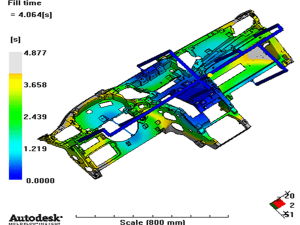

  • MoldFlow

We can accept and convert below document formats:

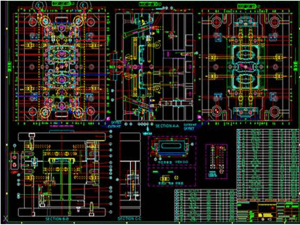

2D: DWG, DXF, PDF
3D: X_t,IGES, STP.PRT. STL.
